Qmobile Commando 1 Flash File

on in , ,

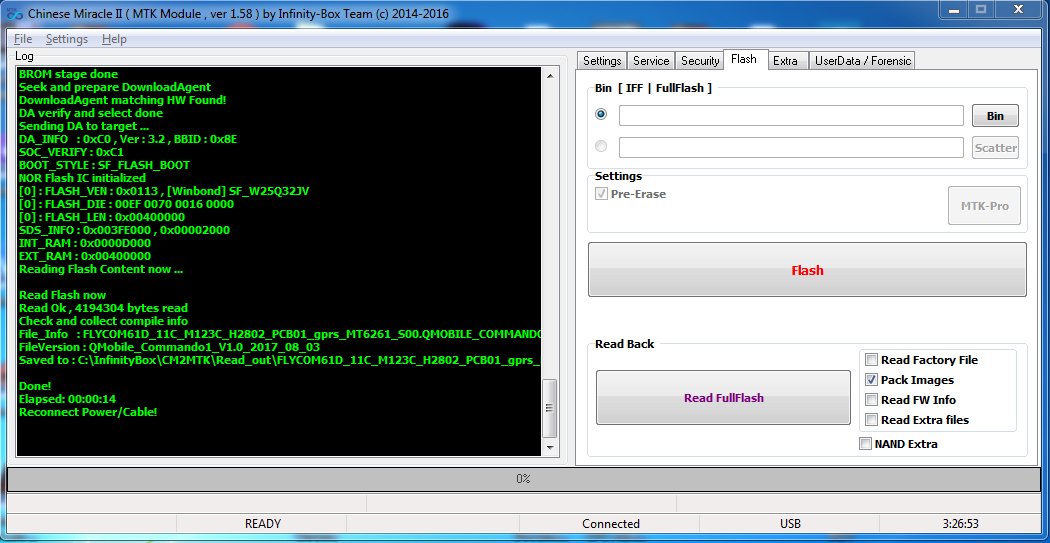

Qmobile Commando 1 Official Flash File read by CM2.
First Time Factory File + Bin File
FLYCOM61D_11C_M123C_H2802_PCB01_gprs_MT6261_S00


1. Power Off Phone , Remove battery , Insert back
2. Insert USB cable. In some cases require hold BootKey ( '*' )
 Wait for phone... Phone found! [ 3 ]
 Sync...
Sync Ok, read regs...
Inital regs read done
Boot Info :
BB_CPU_ID : 6261
BB_CPU_HW : CB01
BB_CPU_SW : 0001
BB_CPU_SB : 8000
BB_CPU_NM : [MediaTek] MT6261_S0000
BB_CPU_SN : 524354182922CFD56A4A428531FCAEC9
BROM Protocol Version : 05
Setting...
Setting done , result code 0x000E
BROM stage done
Seek and prepare DownloadAgent
DownloadAgent matching HW Found!
DA verify and select done
Sending DA to target ...
DA_INFO : 0xC0 , Ver : 3.2 , BBID : 0x8E
SOC_VERIFY : 0xC1
BOOT_STYLE : SF_FLASH_BOOT
NOR Flash IC initialized
[0] : FLASH_VEN : 0x0113 , [Winbond] SF_W25Q32JV
[0] : FLASH_DIE : 00EF 0070 0016 0000
[0] : FLASH_LEN : 0x00400000
SDS_INFO : 0x003FE000 , 0x00002000
INT_RAM : 0x0000D000
EXT_RAM : 0x00400000
Reading Flash Content now ...
Read Flash now
Read Ok , 4194304 bytes read
Check and collect compile info
File_Info:FLYCOM61D_11C_M123C_H2802_PCB01_gprs_MT6261_S00.QMOBILE_COMMANDO1_V1_0_2017_08_03.bin
FileVersion : QMobile_Commando1_V1.0_2017_08_03
Saved to : C:\InfinityBox\CM2MTK\Read_out\FLYCOM61D_11C_M123C_H2802_PCB01_gprs_MT6261_S00.QMOBILE_COMMANDO1_V1_0_2017_08_03.bin

Done!
Elapsed: 00:00:14
Reconnect Power/Cable!
